Missing Addin User Warning

Missing Addin User Warning

I develop workbooks that require an addin for some of their functionality. For example, a set of school staffing models whose addin allows for selecting data sources, building pivot tables and saving timestamped copies. I like this structure because it’s very maintainable – it’s much easier to fix a bug or add a feature in one addin than it is to try to track down a bunch of workbooks and update their VBA. Easier on me and better for my users. Of course, people’s computers get re-imaged or replaced and IT departments are unlikely, to say the least, to re-install a VBA addin. Folks often don’t realize their addins are gone and that’s why their model is broken. Yesterday I got an idea about how to warn users about a missing addin. I’m still tinkering with it, but the idea is quite simple.

Use a UDF in the Addin

What I did was create the world’s simplest UDF and put it in the addin:

Public Function IsAddinLoaded() As Boolean
IsAddinLoaded = True
End Function

It doesn’t have to be boolean. It could be a string and return “Cult of the Flying Spaghetti.” That’s because it’s only purpose is to fail when it’s not there.

Missing Addin = Missing UDF = opportunity for IsError formula. So, for example, in cell A1 of the addin-dependent workbook put something like:

="Ye Olde Spreadsheet " & IF(ISERROR(isaddinloaded()*TODAY()),"requires the Green Eyeshade Addin!
Please install it.","is Good to Go")

Then add a little conditional formatting based on the missing addin condition and you get something like this. (I tried referring to the UDF directly in the conditional formatting, but it looks like that’s not allowed.)

Green Eyeshade required

The formula contains a volatile function: TODAY. That’s so if the addin is uninstalled the error is activated with the next change to the worksheet. I’d like to avoid the volatile function and I’ve tried to do this in the VBA itself, but haven’t figured out anything yet.

The message does change to the non-warning one as soon as the addin is installed.

Green Eyeshade installed

The addin a very simple one made up just for this post. It’s called Green Eyeshade and it’s for modernizing old spreadsheets like this one. Its ribbon tab is shown when a workbook meeting certain criteria is opened. Here’s the ribbon tab:

Green Eyeshade tab

And here’s the modernization button in action (wonderful what you can find by googling “Peltier pie charts”).

Green Eyeshade modernized

This idea could also be applied to the problem of warning users to enable VBA when opening xlsm files. I’ve never been a big fan of the “hide everything in the workbook except a warning page” although I do like Mike Alexander’s clear explanation. Anyways, something like this might work as an alternative in that case too.

Download

Here’s a zip file with the xlam addin and the target “olde spreadsheet” xlsx file.

Tweaking View Side by Side

Tweaking View Side by Side

I use View Side by Side a lot. That means I spend a bit of time fiddling with the two windows because I don’t always want each to take up half the space. I often make one smaller and then adjust the second to have it fill the rest of the screen. This weekend I set about tweaking View Side by Side to adjust one window when the other is resized.

Along the way I learned a few interesting things. The most important to this code was figuring out how tell if View Side by Side is activated. I also noticed some issues with View Side by Side in Excel 2013.

Below is a screenshot of what happens when you resize a window in View Side by Side. You can see that it needs to be followed up with some more fiddling to snug the lower window up against the upper one:

regular View Side by Side

The code I came up with is in an application-level event. It uses a function to test whether View Side by Side is active. It’s designed to work in Excel 2010 (and 2007, although untested) as well as 2013. The 2013 tweaks were a little trickier, because Application.Height returned the same thing as Window.Height in 2013. This means the code needs to store the lower windows top location before resizing it.

You’ll also note that I used On Error Resume Next more freely than normally. After all we’re just resizing windows here, and it’s easier than testing for odd things like heights less than zero:

Public WithEvents app As Excel.Application

'application-level event in a class module
Private Sub app_WindowResize(ByVal Wb As Workbook, ByVal Wn As Window)
Dim UpperWindow As Excel.Window
Dim LowerWindow As Excel.Window
Dim OldLowerWindowTop As Double
Dim LowerWindowChange As Double

'See function below
If SideBySideOn Then
    With Application
        .EnableEvents = False
        'assign the two windows,
       'based on which is uppermost
       If .Windows(1).Top <= .Windows(2).Top Then
            Set UpperWindow = .Windows(1)
            Set LowerWindow = .Windows(2)
        Else
            Set UpperWindow = .Windows(2)
            Set LowerWindow = .Windows(1)
        End If

        'easy way to deal with heights less than zero, etc.
       On Error Resume Next
        'for Excel 2010 could just use Application.Height
       'but in Excel 2013 each window is its own Application
       If ActiveWindow.Caption = UpperWindow.Caption Then
            OldLowerWindowTop = LowerWindow.Top
            LowerWindow.Top = UpperWindow.Top + UpperWindow.Height
            LowerWindowChange = LowerWindow.Top - OldLowerWindowTop
            LowerWindow.Width = UpperWindow.Width
            LowerWindow.Height = LowerWindow.Height - LowerWindowChange
        Else
            UpperWindow.Height = LowerWindow.Top
            UpperWindow.Width = LowerWindow.Width
        End If
        On Error GoTo 0
        .EnableEvents = True
    End With
End If
End Sub

This code only responds to resizes involving the two horizontal borders in the middle, as well as the right-hand borders. So, if you drag the top border of the upper window nothing adjusts.

Application-Level Event

The sample workbook sets an application-level class in its Workbook_Open event. I’ve posted on this before and there’s lots of good info out there, like this Chip Pearson page.

How Do You Tell if View Side by Side is Active?

That’s an interesting question! Here’s what I tried:

  1. First, I looked for some type of setting, like Application.ViewSideBySideEnabled. I can’t find one. Instead there’s two methods: CompareSideBySideWith and the rather drastic-sounding BreakSideBySide.
  2. It would be nice if you could just get the state of the Ribbon’s View Side by Side button. That would tell you whether it’s active or not. But I don’t know of any way to do this.
  3. You can, however, check the state of Excel 2003-style command buttons. So I tried looking at Application.CommandBars(1).Controls("Window").Controls("Compare Side By Side With").State to check whether it’s pressed. It turns out that control – ID 7698 – has no state. Instead it switches captions from “Compare Side by Side With” (followed by a workbook name if there’s only one choice) to “Close Side By Side.”
  4. Based on #3 I considered getting the state by checking whether the first five letters are “Close” or “Compa.” But of course that wouldn’t work for folks with non-English Excel versions, and I generally shy away from using labels when I can use ID’s.
  5. So, finally I decided to use the state of the “Reset Window Position” button. This button is only enabled when View Side by Side is active.

This leads to a one-line function that checks that button’s status using its ID of 7874. There is one final wrinkle, which is that this button doesn’t appear by default in the Excel 2003 “Window” toolbar. By default it lives only in the “Add Command” toolbar which was the one that appeared in 2003 when you modified a toolbar. No problem. We can find number 7874 wherever it lives by searching through all the commandbars using FindControl. Here’s the function:

Function SideBySideOn() As Boolean
'Reset Window Position
SideBySideOn = CommandBars.FindControl(ID:=7874).Enabled
End Function

Here’s how it looks with the code running:

tweaked View Side by Side

Other Stuff Learned Along the Way

  • If you click the Reset Window Position button with the lower window selected, it moves to the top. I’d never noticed that.
  • There is no Window.Move event
  • View Side by Side in Excel 2013 is harder to use. This makes sense, since one of the biggest changes in Excel 2013 is the change to a Single-Document-Interface, making it easier to separate workbooks to multiple monitors. However it’s hard to grab the right edge of a workbook inside View Side by Side. And, as noted above, Application.Height and Window.Height now seem to be the same thing. This makes sense most of the time, but not when you are in View Side by Side mode and trying to compare the height of one of the workbooks/windows to the overall height.

Download!

Here you are my friend.

Autofilter VBA Operator Parameters

Autofilter VBA Operator Parameters

The other day I was flipping back and forth between two tables with related sets of data and comparing the rows for one person in each set. I do this kind of thing all the time and often end up filtering each table to the same person, location, date, or whatever, in order to compare their rows more easily. I thought “Wouldn’t it be great to write a little utility that filters a field in one table based on the same criteria as a filter in another table?” Like many questions that begin with “Wouldn’t it be great to write a little utility” this one led me on a voyage of discovery. The utility isn’t finished, but I know a lot more about Autofilter VBA operator parameters.

My biggest discovery is that the parameters used in the Range.Autofilter method to set a filter don’t always match the properties of the Filter object used to read the criteria. For instance, you filter on a cell’s color by passing its RGB value to Criteria1. But when reading the RGB value of a Filter object, Criteria1 suddenly has a Color property. More about this and some other such wrinkles as we go along.

I also realized there are a bunch of xlDynamicFilter settings – like averages and dates – that all use the same operator and are specified by setting the Criteria1 argument.

I also noticed a typo in the xlFilterAllDatesInPeriodFebruray operator. I wonder if anybody has ever even used it?

The Basics – Setting a Filter in VBA

To review the basics of setting Autofilters in VBA you can peruse the skimpy help page. To add a bit to that, let’s return to one of my favorite tables:

Pie Table

Its columns have several characteristices on which you can filter, including text, dates and colors. Here it’s filtered to names that contain “A”, pies with the word “Berry”, dates in the current month and puke-green:

Pie Table Filtered

To filter the pies to just berry you have to load their names into an array and set Criteria1 and Operator like:

Sub PieTableFilters()
Dim lo As Excel.ListObject
Dim BerryPies As Variant

Set lo = ActiveWorkbook.Worksheets("pie orders").ListObjects(1)
BerryPies = Array("Strawberry", "Blueberry", "Razzleberry", "Boysenberry")
lo.DataBodyRange.AutoFilter field:=2, _
    Criteria1:=BerryPies, Operator:=xlFilterValues
End Sub

Discovery #1 – An xlFilterValues Array Set With Two Values Becomes an xlOR Operator:
To read the filter created by the code above, I’d still use the xlFilterValues operator and read the array from Criteria1. However, if the column was filtered to only two types of pies, I’d use the xlOR operator and Criteria1 and Criteria2. This is unchanged since Johh Walkenbach posted about Stephen Bullen’s function to read filters settings for Excel 2003.

Similarly, if I set a filter with a one-element array, e.g., only one type of pie, and then read the filter operator it returns a 0.

The Basics, Continued – Setting a Color Filter

Here’s how to set the filter for the last column. It’s based on cell color. Note that it works for Conditional Formatting colors as well as regular fill colors:

lo.DataBodyRange.AutoFilter field:=4, _
    Criteria1:=8643294, Operator:=xlFilterCellColor

Here 8643294 is the RGB value of that greenish color. In order to determine that RGB in code, you need to use something like:

Set lo = ActiveWorkbook.Worksheets("pie orders").ListObjects(1)
Debug.Print lo.AutoFilter.Filters(4).Criteria1.Color

Discovery #2 – The Filter.Criteria1 Property Sometimes has Sub-Properties, Like Color:
Note that the RGB isn’t in Criteria1 – it’s in Criteria1.Color, a property I only discovered by digging around in the Locals window:

https://i0.wp.com/yoursumbuddy.com/wp-content/uploads/2015/02/Post_0076_cell_color_in_locals_window.jpg?resize=584%2C526

Also note that there are a bunch of other properties there, like Pattern, etc.

Further, if a column is filtered by conditional formatting icon (yes you can do that) using the xlFilterIcon(10) parameter then Criteria1 contains an Icon property. This property is numbered 1 to 4 (I think) and relates to the position of the icon in its group.

Discovery #3: xlDynamicFilter and Its Many Settings
The xlFilterDynamic operator, enum 11, is a broad category of settings. You narrow them down in Criteria1. So, for instance, you can filter a column to the current month like:

lo.DataBodyRange.AutoFilter field:=3, _
    Criteria1:=XlDynamicFilterCriteria.xlFilterThisMonth, _
    Operator:=xlFilterDynamic

This is a good time to mention the chart below that contains all of these xlDynamicFilter operators and their enums. Looking at it you’ll note that in addition to a whole lot of date filters (all of which appear in Excel’s front end as well) there’s also the Above Average and Below Average filters.

Discovery #4: Top 10 Settings Are Weird

To set a Top 10 item in VBA you do something like this:

lo.DataBodyRange.AutoFilter field:=4, _
    Criteria1:=3, Operator:=xlTop10Items

Here, I’ve actually filtered column 4 to the top three items (As stated in Help, Criteria1 contains the actual number of items to filter). If I look at the filter settings for that column in the table I’ll see that Number Filters is checked and the dialog shows “Top 10.” That makes sense.

However if we look at the locals window right after the line above is executed, we see that the number 3 which we coded in Criteria1 is replaced by a greater than formula:

Top 3 in locals window

Further, if I then wanted to apply this filter to another column based only on what I’m able to read in VBA, I’d have to change it to:

'ValuePulledFromAnotherFilter contains ">=230"
lo.DataBodyRange.AutoFilter field:=4, _
    Criteria1:=ValuePulledFromAnotherFilter

Note that I don’t use an operator at all. We could also use xlFilterValues or xlOr. Using nothing best reflects what shows in the locals window, where the operator changes to 0 after the code above is executed.

The Chart

Below is a chart, contained in a OneDrive usable and downloadable workbook, that summarizes much of the above. It includes all the possible Autofilter VBA Operator parameters, as well as all the sub-parameters for the xlFilterDynamic operator.

Discovery #5: February is the Hardest Month (to spell)

I like to automate things as much as possible, so generating the list of xlFilterDynamic properties was kind of a pain. To get the list of constants from the Object Browser I had to copy and paste one by one into Excel, where I cobbled together a line of VBA for each one, like:

Debug.Print “xlFilterAboveAverage: ” & xlFilterAboveAverage

Of course I saw I didn’t need to paste all the month operators into Excel since I could just drag “January” down eleven more cells and append the generated month names. Minutes saved!

But when I ran the code it choked on February. It was then I noticed that its constant is misspelled.

Two More Tips

1. Use Enum Numbers, not Constants: This misspelling of February points out a good practice when using any set of enums: use the number, not the constants. For example, use 8, not xlFilterValues. This helps in case the constants are changed in future Excel versions, and with international compatibility, late binding and, at least in this case, spelling errors. Of course it’s not nearly as readable and you have to figure out the enums.

2. The Locals Window is Your Friend: I don’t use the Locals window very much, but in working with these Autofilter settings, it was hugely helpful. It revealed things that I don’t think I’d have figured out any other way.

Conclusion – Building a Utility

Armed with my newfound knowledge, I could come close to building a utility that copies filters from one table to another, or one like the Walkenbach/Bullen filter lister linked at the beginning of this post. In most cases I could just transfer the filter by using the source Operator and Criteria1 (and Criteria2 where applicable)

But as we’ve seen, there’s a couple of filter types where the operator and/or criteria change. The worst of these is a Top 10 filter. My first thought was to count the number of unfiltered cells, but if the column has duplicates, e.g., your top value appears three times, that won’t always be accurate. In addition, other columns could be filtered which could also throw off the count.

Transferring a color scale filter would be even trickier as it’s very possible the same color wouldn’t exist in the second table.

Whew! Long post! Leave a comment if you got this far and let me know what you think.

Four ListObject QueryTable Tests – Each Better Than the Last

Four ListObject QueryTable Tests – Each Better Than the Last

I started with this devil-may-care bit of code:

Sub Zero()
Dim ws As Excel.Worksheet
Dim lo As Excel.ListObject

For Each ws In ThisWorkbook.Worksheets
    For Each lo In ws.ListObjects
        On Error Resume Next
        lo.QueryTable.Refresh
        On Error GoTo 0
    Next lo
Next ws
End Sub

Just wrap the QueryTable.Refresh in an On Error pair and don’t sweat it, that was my stance, at least for a day or two. If the ListObject had a QueryTable it would get refreshed. If it didn’t, it wouldn’t.

As the time got closer to hand it off to other people – people who might be bummed if their data didn’t refresh for reasons I hadn’t anticipated – I took a more prudent approach. I wrote some code to check if the ListObject actually had a QueryTable. This allows me to isolate the “ListOject with no QueryTable” error from all the others that might fly in under the radar.

I ended up with a simple function that’s now in my code library. But before we get to that, I’ll show you three lesser ListObject QueryTable tests, from bad to better:

#1 – Testing with Err.Number

In case you’re not familiar with On Error statements, I should clarify that On Error Resume Next let’s your code run willy-nilly through any and all errors. The madness only ends when an On Error Goto 0 statement is encountered. On Error Goto 0 also resets Err.Number to 0.

Sub One()
Dim ws As Excel.Worksheet
Dim lo As Excel.ListObject
Dim qt As Excel.QueryTable

For Each ws In ThisWorkbook.Worksheets
    For Each lo In ws.ListObjects
        On Error Resume Next
        Set qt = lo.QueryTable
        If Err.Number = 0 Then
            qt.Refresh
        End If
        On Error GoTo 0
    Next lo
Next ws
End Sub

I would never do this (not even in a really old Google Groups answer, I hope). It doesn’t fix the basic problem. The refresh is still happening with On Error set to Resume Next. It’s even worse if you have Else clauses. You could blunder through them as well before getting back to On Error Go To 0. The only way I can see it working is with another On Error Go To 0 right inside the IF clause before the refresh, and that’s just ugly.

#2 – Using an ErrorNum variable

Sub Two()
Dim ws As Excel.Worksheet
Dim lo As Excel.ListObject
Dim qt As Excel.QueryTable
Dim ErrorNum As Long

For Each ws In ThisWorkbook.Worksheets
    For Each lo In ws.ListObjects
        On Error Resume Next
        Set qt = lo.QueryTable
        ErrorNum = Err.Number
        On Error GoTo 0
        If ErrorNum = 0 Then
            qt.Refresh
        End If
    Next lo
Next ws
End Sub

This approach fixes the problem in the previous routine by immediately setting an ErrorNum variable to Err.Number’s value. This tightens up the On Error Resume Next scope so it’s only active during the test. Pretty good, and for tests that don’t involve objects I’d probably stop there.

#3 – You’ve got an object variable, just use that!

Sub Three()
Dim ws As Excel.Worksheet
Dim lo As Excel.ListObject
Dim qt As Excel.QueryTable

For Each ws In ThisWorkbook.Worksheets
    For Each lo In ws.ListObjects
        Set qt = Nothing 'Don't forget this!
        On Error Resume Next
        Set qt = lo.QueryTable
        On Error GoTo 0
        If Not qt Is Nothing Then
            qt.Refresh
        End If
    Next lo
Next ws
End Sub

Since we’re trying to set qt to something, let’s just test if it’s not nothing. This has the same advantage as the previous one: On Error statements bracket just the one line of your test, preventing stealth errors. The big gotcha is you’ve got to remember to set qt to Nothing before you try to set it to something. Otherwise, if the previous ListObject had a QueryTable, and this one doesn’t, the Resume Next will happily ignore the error and leave qt set to the previous one. That’s confusing, and potentially tragic.

#4 – The right way

Sub Four()
Dim ws As Excel.Worksheet
Dim lo As Excel.ListObject
Dim qt As Excel.QueryTable

For Each ws In ThisWorkbook.Worksheets
    For Each lo In ws.ListObjects
        Set qt = GetListObjectQueryTable(lo)
        If Not qt Is Nothing Then
            qt.Refresh
        End If
    Next lo
Next ws
End Sub

Function GetListObjectQueryTable(lo As Excel.ListObject) As Excel.QueryTable
On Error Resume Next
Set GetListObjectQueryTable = lo.QueryTable
End Function

Here I’ve moved the test into a function and put it in my utility module along with tests for workbook state, folder existence and other such mundanities. I know it works, I don’t have On Errors in the main module, and I only need Resume Next in the function, cause there’s not a heckuva lot of room for resuming.

Tangential miscellany

Here’s a pithy Jeff Weir rant on testing for ActiveCell.PivotTable versus ActiveCell.Listobject

This post deals with Excel-2007-and-on ListObject.QueryTables. In earlier versions QueryTables belonged to the worksheet they were on. In this Stack Overflow answer Dick (DDOE) Kusleika posts a function to find any QueryTable by name.

A thing I should know, but maybe you can tell me

What’s the difference between ListObject.Refresh and QueryTable.Refresh?

Listing UserForm Accelerator Keys

Listing UserForm Accelerator Keys

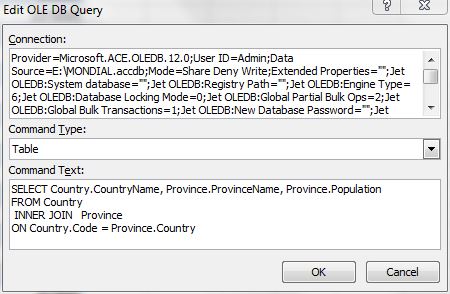

Towards the end of the last post I showed a form I made to copy query properties from one table to another. That userform has 20 controls and, as always before I post something for your enjoyment, I tried to make is as user-friendly as possible.

So I set the default and cancel properties to the appropriate buttons and arrange the tab order of all the controls. When that’s done I assign accelerator keys to some of the controls. The accelerator property specifies a letter or other key, which when pressed along with the Alt key, activates that control.

button accelerator key

In the example above, a helpful but peevish developer has specified the % key as the accelerator, perhaps for the first time in history.

tab_ dialog

I enjoy the fiddly work of setting tab orders and accelerators. I’d enjoy it more if the tab order dialog weren’t so hard to read.

It’s also hard to tell which controls have which accelerators and whether you’ve already used a certain letter.

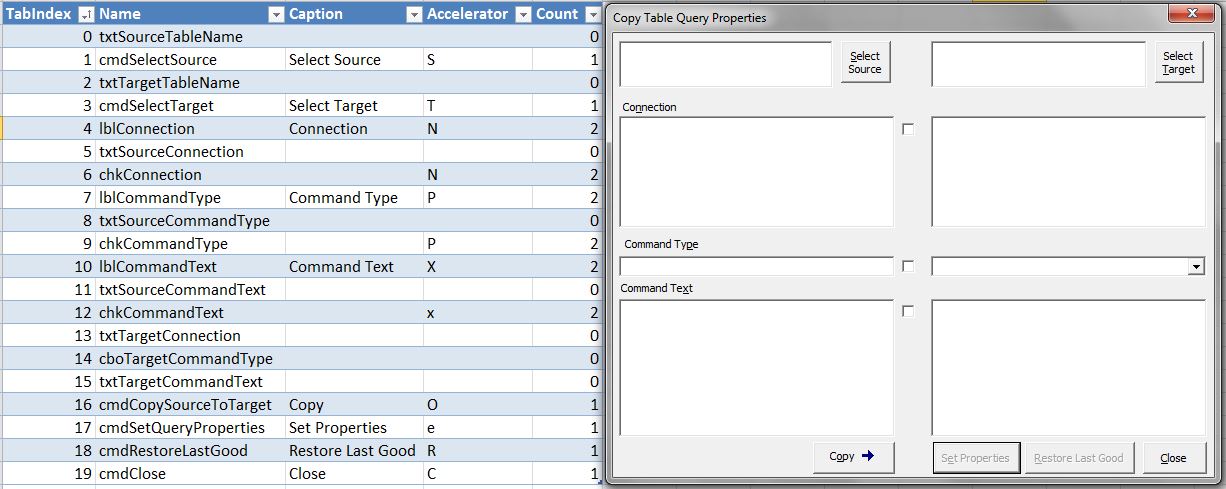

So I wrote a bit of code that takes a userform as an argument and prints the relevant control properties to a newly-minted worksheet.

Sub ListUserFormAccelerators(frm As UserForm)
Dim ControlsCount As Long
Dim i As Long
Dim ctl As msforms.Control
Dim ControlName As String
Dim ControlTabIndex As Long
Dim ControlCaption As String
Dim ControlAccelator As String
Dim ControlProperties() As Variant
Dim ws As Excel.Worksheet
Const TableHeaders As String = "TabIndex,Name,Caption,Accerator,Count"

ControlsCount = frm.Controls.Count
ReDim ControlProperties(1 To ControlsCount, 1 To 4)
For i = 1 To ControlsCount
    Set ctl = frm.Controls(i - 1)
    ControlName = ctl.Name
    ControlTabIndex = ctl.TabIndex
    ControlCaption = ""
    ControlAccelator = ""
    'some controls don't have the next two properties
   On Error Resume Next
    ControlCaption = ctl.Caption
    ControlAccelator = ctl.Accelerator
    On Error GoTo 0
    ControlProperties(i, 1) = ControlTabIndex
    ControlProperties(i, 2) = ControlName
    ControlProperties(i, 3) = ControlCaption
    ControlProperties(i, 4) = ControlAccelator
Next i
Set ws = Workbooks.Add.Worksheets(1)
With ws
    .Range("A1:E1") = Split(TableHeaders, ",")
    .Range("A2").Resize(ControlsCount, 4) = ControlProperties
    With .ListObjects.Add(xlSrcRange, .UsedRange, , xlYes)
        .Name = "tblControlProperties"
        .ListColumns("Count").DataBodyRange.FormulaR1C1 = "=COUNTIF([Accerator],[@Accerator])"
        With .Sort
            .SortFields.Add Key:=Range("tblControlProperties[TabIndex]")
            .Header = xlYes
            .Apply
        End With
        .Range.Columns.AutoFit
    End With
    'Want to close without prompt to save
   .Parent.Saved = True
End With
End Sub

The code loops through a form’s controls and ultimately adds them all to an array which is dumped into a worksheet created in the code.

You’d call it like this:

Sub HereYouGo()
ListUserFormAccelerators frmCopyTableQuery
End Sub

And the result looks like this (click on it to open in its own, larger, window):

code output

You may notice that some of the accelerators are doubled above. Each pair is for a label, followed by a textbox with no accelerator and then by a checkbox, which has the second occurrence of that acceelator. There’s two things going on here. The first is that if a control isn’t a Tab Stop, like a label, then the accelerator will take you to the next control, in this case the textbox. The second is that I wanted the user to be taken to the associated checkbox if they hit the accelerator again.

I can’t figure out how to call this code from another project. I messed around with Application.VBE.VBProjects, but can’t get it to work. Another nice thing would be the inverse of this code, a routine that would apply the tab order and accelerators from the worksheet to the userform.

Tables’ Edit Query Dialog

Tables’ Edit Query Dialog

One of my favorite Excel features is the Edit OLE DB Query dialog, where you can edit a table’s data connection and SQL. If you’re not familiar with table data connections, I’m talking about tables created by clicking something like “From Access” in the ribbon’s Data menu. Besides Access, you can connect to other databases, Excel files, the web, and who knows what else. Here’s a nice example of connecting to Access.

To get to the Edit OLE DB Query dialog, right-click in a table and choose “Table” then “Edit…”

Each time I do so I’m filled with child-like wonder at the ability to throw in a new connection string, switching, for example, from Access to SQL Server.

Edit Query dialog 2

In addition you can change from the default Command Type of “Table” – which returns all the contents of a table, query or view – to “SQL,” which allows you to enter SQL directly into the Command Text box.

As far as I can tell this SQL can be as complex as what you would use directly in that type of database. For example, you can use With statements with a SQL Server connection.

That being said, and depending on my access privilegees, I try to limit the amount of SQL on the Excel side. If possible, I connect to an existing database view and then maybe filter it in the Command Text box. So with a SQL Server view called vwScoresAllYears, I might narrow the results with SQL like “SELECT * FROM vwScoresAllYears WHERE vwScoresAllYears.year IN (2012,2013).”

As cool as that is – and it is – it pales next to the ability to switch connections to a completely different type of database. One time we were porting a project from Access to SQL Server. The front end was a big old workbook with a data table pointing at an Access query. The table had lots of calculated columns and several pivot tables pointing at it. To do the switch, we could have created a new table pointing at the SQL Server view, rebuilt the calculated columns and pointed the pivot tables at it. Instead, I just switched the connection string so that it pointed at the SQL Server view. Since the output columns were exactly the same, the transition was barely noticeable. I just hit refresh and the SQL Server data poured into the table.

The following two pics show what I mean. The first connection is to an Access database…
Access connection

The second connection is to a SQL Server database:SQL Server connection

If you’re wondering, the connection shown in the first picture in this post is to another Excel workbook. In that case there are three worksheets serving as tables. The SQL looks a bit different, because when referring to Excel sheets or ranges, the names are surrounded in brackets, and followed by dollar signs in the case of sheets. If the idea of using SQL on Excel workbooks is new to you, this MSDN page is a good start.

I often find myself copying query settings from one table to another. For a while I’d open the Edit OLE DB Query dialog for a table, copy the connection data, open the dialog for the second one and paste the data. That got kind of boring, so guess what? That’s right, I wrote a tool to do what I want:

Copy Properties tool

The way it works is you select a Source table – by clicking into a table and clicking the form button – and then do the same for the Target. You then select which parts of the query – Connection, Type, or Text – to copy over. You can also just edit the text in the Connection or Command Text boxes. Clicking the Copy button just copies the selected properties from the source side of the form to the target side – it doesn’t change the query properties themselves. You can make further edits in the target textboxes as needed. Clicking the Set Properties button copies applies the properties to the target table and attempts to refresh the table. If the refresh fails you get an error message. At that point you can tinker with the properties some more or click the Restore Last Good button, which will revert the table properties to the last working query.

This is different than the built-in dialog, which just reverts to the last working query. I find this ability to tweak a query until it works quite handy. Another advantage is that it opens up queries created by MS Query without the dialog telling you that you won’t be able to edit it.

To make it user-friendly for Dick and other shortcut-only types, the checkboxes can be reached by clicking the Alt Key combo for that property twice.

I uploaded an empty workbook that has a button to display this modeless form. If you download it be sure to save your work before trying this tool. I’ve used it for a few months now with no big issues, but better safe than sorry. Here’s the link.

Pivot Table Per-Item Color Scales

Pivot Table Per-Item Color Scales

Let’s take another journey to the nexus of conditional formatting and pivot tables. My latest foray involved adding per-item color-scales to a pivot table, something like this, where the color scale is applied separately to each quarter:

color scale by quarter

You can see, for example, that the very high sales of $9,999,999 for January in Region 1 affect the color scale for the other cells in Quarter 1. However, the color scale within other quarters are unaffected, and a 99,999 value in Quarter 2 gets the same green that the much higher value did in Quarter 1.

Here’s another view with each month getting its own scale:

color scale by month

Finally, this shows icon sets by region. Notice that although they span each region for all months, the icon sets ignore the subtotals, which is often preferable:

icons by region

My code allows you to include or include or ignore subtotals in each item’s color scale. I went about this a couple of ways before settling on the PivotTable.PivotSelect method. I learned about this method recently in a comment by Mike Alexander on one of Jeff Weir’s massive DDOE posts. I can’t find any good documentation, but in Excel 2007 forward you can do things like:

pvt.PivotSelect "'Row Grand Total'", xlDataOnly

Select a pivot table’s Row Grand Total area

pvt.PivotSelect "'Region'['East';Data]", xlDataOnly

Select the data rows for the East PivotItem of the Region PivotField

(There is a PivotSelect method in 2003, but these types of statements failed.)

It looks like PivotSelect is the VBA version of clicking, for example, a single subtotal in a pivot table and thereby selecting them all. I figured out the syntax by turning on the Macro Recorder and doing those types of selections:

selecting pivot parts in Excel

I’m not crazy about using PivotSelect – I assume all that selecting will slow things down on big pivot tables. On the other hand it seems to work consistently. I had much more complicated code that worked most of the time, but only most.

Here’s the code, which runs in Excel 2007 on:

Sub PivotItemCF(pvtFieldToFormat As Excel.PivotField, IgnoreSubtotals As Boolean)
Dim pvt As Excel.PivotTable
Dim pvtItem As Excel.PivotItem
Dim pvtField As Excel.PivotField
Dim rngTest As Excel.Range

'Lots of selecting!
Application.ScreenUpdating = False

Set pvt = pvtFieldToFormat.Parent
With pvt
    For Each pvtItem In pvtFieldToFormat.PivotItems
        'A distressing number of possible errors from hidden items.
       'If the item has no DataRange ignore it.
       On Error Resume Next
        Set rngTest = pvtItem.DataRange
        If Err.Number = 0 Then
            'Specify the Field name in case there are multiple items
           'with the same name,for example from Grouping.
           'Surround PivotItem names with single quotes in case they have spaces.
           pvt.PivotSelect pvtFieldToFormat.Name & "['" & pvtItem.Name & "';Data;Total]", xlDataOnly
            'Call routine that does the formatting
           FormatRange Selection
        End If
        On Error GoTo 0
    Next pvtItem

    If IgnoreSubtotals Then
        'Clear the FormatConditions from Row and Column fields
       For Each pvtField In pvt.PivotFields
            If pvtField.Orientation = xlRowField Or pvtField.Orientation = xlColumnField Then
                'I can't figure a test for whether the subtotals are visible
               'so just blindly firing away.
               On Error Resume Next
                .PivotSelect "'" & pvtField.Name & "'[All;Total]", xlDataOnly
                If Err.Number = 0 Then
                    Selection.FormatConditions.Delete
                End If
                On Error GoTo 0
            End If
        Next pvtField
        .PivotSelect "'Row Grand Total'", xlDataOnly
        Selection.FormatConditions.Delete
        .PivotSelect "'Column Grand Total'", xlDataOnly
        Selection.FormatConditions.Delete
    Else
    End If
End With

Application.ScreenUpdating = True
End Sub

The FormatRange routine is just Macro Recorder code generated by selecting part of the pivot table and applying a color scale. You can do the same thing for data bars or icons.

In the sample workbook, the code is triggered by a WorkSheet_Change event that fires whenever one of the three yellow data validation cells is changed.

Get Unique Per-Row Values With RemoveDuplicates

Get Unique Per-Row Values With RemoveDuplicates

This post consists of two topics, both involving VBA’s RemoveDuplicates method. First I discuss an error and a shortcoming in the RemoveDuplicates documentation that have confounded myself and others. After those are cleared up I’ll show how to use RemoveDuplicates to return a two-dimensional array of unique items from a range containing one or more columns.

RemoveDuplicates was added to VBA (along with it’s front-end counterpart Data>Remove Duplicates) in Excel 2007. It’s very handy, allowing you to select one or more columns in a range and and winnow it down to the rows where the combined values of those columns are unique. It does this “in-place,” leaving other areas of the sheet intact.

RemoveDuplicates’ Columns Argument isn’t Really Optional

The Excel 2013 MSDN documentation describes the variant Columns argument as an optional “Array of indexes of the columns that contain the duplicate information. If nothing is passed then it assumes all columns contain duplicate information.” (my emphasis)

Later it gives an example of leaving out the Columns argument to remove duplicates from the entire range:

“The following code sample removes duplicates with all columns from a range.”

ActiveSheet.Range("A1:C100").RemoveDuplicates

However, testing reveals that the above code does nothing. This is confirmed by the perplexed comments of various forum visitors. In truth, you have to specify the columns variant array in all cases. The help example should look like this:

ActiveSheet.Range("A1:C100").RemoveDuplicates Columns:=Array(1,2,3)

If you want to base the removal on just some of the columns in a range, for example columns A and C, you do it like this:

ActiveSheet.Range("A1:C100").RemoveDuplicates Columns:=Array(1,3)

Using a Dynamic Columns Array

If you use RemoveDuplicates in code, there’s a good chance you’ll want to determine the array of column numbers at runtime and not hard-code them as above. As a simple test, I tried something like:

Dim ColumnsToCheck as Variant
ColumnsToCheck = Array(1,3)
ActiveSheet.Range("A1:C100").RemoveDuplicates Columns:=ColumnsToCheck

However this results in a Runtime Error ‘5’ – Invalid Procedure Call or Argument.

After looking around the web a while I found that the answer is to wrap ColumnsToCheck in parentheses, so the code becomes:

Dim ColumnsToCheck as Variant
ColumnsToCheck = Array(1,3)
ActiveSheet.Range("A1:C100").RemoveDuplicates Columns:=(ColumnsToCheck)

I know, from one of my all-time favorite DDOE posts that parentheses force evaluation of what’s inside them. Others on the web said that these parens “coerce” the evaluation of the array. I don’t really see how that applies here, so if you can explain why this works, please leave a comment.

One other note about the Columns variant array – it must be zero-based.

Unique Unique Per-Row Values Array Function

Once I’d sorted out the above points, I was able to use RemoveDuplicates as the basis of a function that returns a two-dimensional variant array containing the unique rows in a range. The range can consist of multiple columns that aren’t necessarily adjacent, as in this table of hometowns and sports of 2008 US Olympic athletes:

Olympics table

In the example above I want to return a variant array of all the unique combinations of the State and Sport fields. The specific use is for a worksheet splitter, where I prompt the user for one or two columns and the cycle through the array of unique combinations, creating a separate workbook for each combination.

The code is simple enough. It takes a range as it’s argument, for example the State and Sport fields above. It copies the range it to a worksheet in a newly added workbook. We then use RemoveDuplicates on the entire UsedRange of that new sheet. Because the columns are now contiguous the code can easily assign the modified range back to a variant array. The temporary workbook is then closed without saving.

Function GetUniqueRowValues(rng As Excel.Range) As Variant
Dim wbTemp As Excel.Workbook
Dim wsTemp As Excel.Worksheet
Dim ColNums As Variant
Dim i As Long

'if only one cell selected then can't pass to two-dimensional array
If rng.Cells.Count = 1 Then
    'if the single cell is blank
   If rng.Value = vbEmpty Then
        Exit Function
    Else
        GetUniqueRowValues = rng.Value
        Exit Function
    End If
End If

Application.ScreenUpdating = False
Application.Calculation = xlCalculationManual
'create a temp workbook
'and copy range to it
Set wbTemp = Workbooks.Add
Set wsTemp = wbTemp.Worksheets(1)
With wsTemp
    rng.Copy
    'rng can consist of non-adjactent columns
   'pasting to a new workbook results in a
   'new range with only those columns
   .Range("A1").PasteSpecial xlPasteValues
    ReDim ColNums(0 To wsTemp.UsedRange.Columns.Count - 1)
    'Create the array of column numbers for the
   'RemoveDuplicates' Columns parameter
   For i = LBound(ColNums) To UBound(ColNums)
        ColNums(i) = i + 1
    Next i
    .UsedRange.RemoveDuplicates Columns:=(ColNums), Header:=xlGuess
    'assign the values of the remaining,
   'non-duplicated rows to the function result
   GetUniqueRowValues = .UsedRange
End With
wbTemp.Close False
Application.ScreenUpdating = True
Application.Calculation = xlCalculationAutomatic
End Function

Note that is the original range was just one cell, the returned variant will not be an array. But you’d test for that before running this in the first place, wouldn’t you?

This code is fast for big ranges, handling over one million rows in less than five seconds on my laptop. On the other hand, it has to open and close a workbook, which takes part of a second and causes screen flicker. It’s a lot more flexible at least than my attempts to modify the Collection technique to handle large ranges with non-adjacent columns.

ListBox Filter With Wildcards and Unique Values

ListBox Filter With Wildcards and Unique Values

This post demonstrates a simple setup to filter a userform listbox as you type into a textbox. The filter uses VBA’s Like operator to pick up matches anywhere within the string. For example, typing “ursumb” matches to “yousumbuddy.” The Like operator allows wildcards, so “/*/201?” matches all dates from 2010 onwards. Like is also case-sensitive, so it can filter by case, or not, as specified. In addition the code uses the tried and true Collection method to allow filtering by unique items.

So, with this list of most popular US girls’ names for 2012 (modified in favor of “Emily”) you can filter and then add Unique and Case Sensitive filters. Note that clicking a name takes you to that row in the table:

listbox filter

Nice, isn’t it? Here’s the main routine, which gets called whenever the text in the filter textbox changes or one of the checkboxes is clicked:

Sub ResetFilter()
Dim rngTableCol As Excel.Range
Dim varTableCol As Variant
Dim RowCount As Long
Dim collUnique As Collection
Dim FilteredRows() As String
Dim i As Long
Dim ArrCount As Long
Dim FilterPattern As String
Dim UniqueValuesOnly As Boolean
Dim UniqueConstraint As Boolean
Dim CaseSensitive As Boolean

'the asterisks make it match anywhere within the string
FilterPattern = "*" & Me.txtFilter.Text & "*"
UniqueValuesOnly = Me.chkUnique.Value
CaseSensitive = Me.chkCaseSensitive

'used only if UniqueValuesOnly is true
Set collUnique = New Collection
Set rngTableCol = loActive.ListColumns(1).DataBodyRange
'note that Transpose won't work with > 65536 rows
varTableCol = Application.WorksheetFunction.Transpose(rngTableCol.Value)
RowCount = UBound(varTableCol)
ReDim FilteredRows(1 To 2, 1 To RowCount)
For i = 1 To RowCount
    If UniqueValuesOnly Then
        On Error Resume Next
        'reset for this loop iteration
       UniqueConstraint = False
        'Add fails if key isn't UniqueValuesOnly
       collUnique.Add Item:="test", Key:=CStr(varTableCol(i))
        If Err.Number <> 0 Then
            UniqueConstraint = True
        End If
        On Error GoTo 0
    End If
    'True if UniqueValuesOnly is false or if
   'UniqueValuesOnly is True and this is the
   'first occurrence of the item
   If Not UniqueConstraint Then
        'Like operator is case sensitive,
       'so need to use LCase if not CaseSensitive
       If (Not CaseSensitive And LCase(varTableCol(i)) Like LCase(FilterPattern)) _
           Or (CaseSensitive And varTableCol(i) Like FilterPattern) Then
            'add to array if ListBox item matches filter
           ArrCount = ArrCount + 1
            'there's a hidden ListBox column that stores the record num
           FilteredRows(1, ArrCount) = i
            FilteredRows(2, ArrCount) = varTableCol(i)
        End If
    End If
Next i
If ArrCount > 0 Then
    'delete empty array items
   'a ListBox cannot contain more than 65536 items
   ReDim Preserve FilteredRows(1 To 2, 1 To Application.WorksheetFunction.Min(ArrCount, 65536))
Else
    're-initialize the array
   Erase FilteredRows
End If
If ArrCount > 1 Then
    Me.lstDetail.List = Application.WorksheetFunction.Transpose(FilteredRows)
Else
    Me.lstDetail.Clear
    'have to add separately if just one match
   'or we get two rows, not two columns, in ListBox
   If ArrCount = 1 Then
        Me.lstDetail.AddItem FilteredRows(1, 1)
        Me.lstDetail.List(0, 1) = FilteredRows(2, 1)
    End If
End If
End Sub

This routine takes advantage of the fact that Collection keys must be unique. If “Unique” is checked on the form, we test each value before adding it to the ListBox’s array.

The FilterPattern string has asterisks at the beginning and end. This is why the filter matches if it’s found anywhere within a table item.

In addition to the girl’s name, an array item also holds the record number for that name. This is used in another subroutine that activates the table row when the listbox selection changes:

Private Sub lstDetail_Change()
GoToRow
End Sub

Sub GoToRow()
If Me.lstDetail.ListCount > 0 Then
    Application.Goto loActive.ListRows(Me.lstDetail.Value).Range.Cells(1), True
End If
End Sub

Here’s how it looks when filtering dates:

filtered dates

The speed is quite reasonable for tables with less than 10,000 items. Above that it gets slow, but is still usable all the way up to the limit of 65,536 listbox items. Yikes!

Here’s a workbook with all the code and the name and date tables to fool around with.

An Invitation

I’ve expanded this concept into a full-fledged Table Viewer. I’ve been using it in its alpha state and it’s quite handy for zipping around a big table. Along with the features here, it handles multiple columns, allows you to view only visible rows, and some other stuff. If anybody is interested in testing it out, leave a comment here or use the contact form.

VBA FormatConditions – Per-Row ColorScales, DataBars and IconSets

VBA FormatConditions – Per-Row ColorScales, DataBars and IconSets

At the end of Conditional Formatting Per-Row Color Scales I said I’d be back with code to selectively copy IconSets and DataBars on a per-row basis as well. It took some doing but it’s now presentable. I learned a lot about programming these types of FormatConditions and I’m going to use this utility to generalize what I learned.

First, here’s a sample of the code in action. Some silly guy has added Icons, Data Bars and Color Scales to the values in Row 1. Now he’s copying only the ColorScales from that first row to the rows below:

Conditional formatting copied

I (okay, it’s me) adjust the setting and push the button. The button routine passes the values in the worksheet to the main routine. It’s an expanded version of the code in the previous post, with an addition to delete selected formats. The main procedure is available in the download workbook linked at the end of this post. (The delete code is interesting, and shown later in this post.)

ColorScale, IconSet and DataBar Subroutines

Below are the three subroutines, called from the main procedure, to copy each type of FormatCondition: ColorScales, IconSets and DataBars.

The structure of each of these objects is different. With the exception of the Formula property, ColorScale has no relevant properties in the base object. The properties that need to be copied are all within its ColorScaleCriterion object. IconSets have relevant properties both within the IconSet object and within its IconCriterion object. Finally, DataBars contain no criterion object. All of its relevant properties are set within the base DataBar object.

ColorScale

Here’s the ColorScale subroutine. You can see that the only property in the ColorScale object is the Formula property, which is an interesting one. As far as I can tell this property is only applicable through code. I’ll discuss it more below. It’s only sometimes applicable, and if it’s not it will generate an error when you refer to it. So I surround it with and On Error statement to avoid that.

Sub SetRangeColorScale(rngTargetSection As Excel.Range, csSource As Excel.ColorScale)
Dim csTarget As ColorScale
Dim csCriterion As ColorScaleCriterion

Set csTarget = rngTargetSection.FormatConditions.AddColorScale(csSource.Type)
On Error Resume Next
csTarget.Formula = csSource.Formula
On Error GoTo 0
For Each csCriterion In csSource.ColorScaleCriteria
    With csTarget.ColorScaleCriteria(csCriterion.Index)
        On Error Resume Next
        .Type = csCriterion.Type
        On Error GoTo 0
        On Error Resume Next
        .Value = isCriterion.Value
        On Error GoTo 0
        .FormatColor.Color = csCriterion.FormatColor.Color
        .FormatColor.TintAndShade = csCriterion.FormatColor.TintAndShade
    End With
Next csCriterion
End Sub

Aside from Formula, the properties that need to be copied are part of ColorScale’s ColorScaleCriterion object. They are Type, and the Color and TintAndShade shade properties of ColorScaleCriterion.FormatColor.

The Type property specifies whether a criterion is based on a number, percent, percentile or formula. Value sets the value to be used for the Type, for example, the 90th percentile or the appropriate formula. These properties all have their counterpart in the conditional formatting dialog, shown here with a formula for the Min and Max values:

Color scale with formula

I surrounded the Type and Value assignments in an On Error statement because only some of the criteria have them and you’ll get an error on the ones that don’t. Sheesh, this stuff is confusing!

IconSet

Aside from Formula, the IconSet object has three properties that need to be copied: IconSet, ReverseOrder and ShowIconOnly. IconSet determines the color and type of icons and the others should be obvious:

Sub SetRangeIconset(rngTargetSection As Excel.Range, isSource As Excel.IconSetCondition)
Dim isTarget As IconSetCondition
Dim isCriterion As IconCriterion

Set isTarget = rngTargetSection.FormatConditions.AddIconSetCondition
With isTarget
    On Error Resume Next
    .Formula = isSource.Formula
    On Error GoTo 0
    .IconSet = isSource.IconSet
    .ReverseOrder = isSource.ReverseOrder
    .ShowIconOnly = isSource.ShowIconOnly
    For Each isCriterion In isSource.IconCriteria
        With .IconCriteria(isCriterion.Index)
            .Icon = isCriterion.Icon
            On Error Resume Next
            .Type = isCriterion.Type
            On Error GoTo 0
            On Error Resume Next
            .Value = isCriterion.Value
            On Error GoTo 0
            .Operator = isCriterion.Operator
        End With
    Next isCriterion
End With
End Sub

At the IconCriterion level, there are four properties: Icon, Type, Value and Operator. Icon allows you to change individual icons, just like you can in the user interface. For example, here the gray arrow icon set has been modified to use a green ball in place of the gray up arrow:

Changed icon

Operator sets the relationship of the Icon to the Value. For example, the “>” Operator says to use an up arrow if the cell’s value is greater than the Value property.

DataBar

The DataBar object has no criterion property. All the relevant properties are at the DataBar level. So instead of criteria for the Min and Max, you get the MinPoint and MaxPoint properties. These two made me nervous when I first saw them, as you have to set them via their Modify methods, but that seems to work fine.

Sub SetRangeDataBar(rngTargetSection As Excel.Range, dbSource As Databar)
Dim dbTarget As Databar

Set dbTarget = rngTargetSection.FormatConditions.AddDatabar
With dbTarget
    On Error Resume Next
    .Formula = dbSource.Formula
    On Error GoTo 0
    With .AxisColor
        .Color = dbSource.AxisColor.Color
        .TintAndShade = dbSource.AxisColor.TintAndShade
    End With
    .AxisPosition = dbSource.AxisPosition
    .BarBorder.Type = dbSource.BarBorder.Type
    With .BarColor
        .Color = dbSource.BarColor.Color
        .TintAndShade = dbSource.BarColor.TintAndShade
    End With
    .BarFillType = dbSource.BarFillType
    .Direction = dbSource.Direction
    .MinPoint.Modify newtype:=dbSource.MinPoint.Type, newvalue:=dbSource.MinPoint.Value
    .MaxPoint.Modify newtype:=dbSource.MaxPoint.Type, newvalue:=dbSource.MaxPoint.Value
    .NegativeBarFormat.ColorType = dbSource.NegativeBarFormat.ColorType
    With .NegativeBarFormat.Color
        .Color = dbSource.NegativeBarFormat.Color.Color
        .TintAndShade = dbSource.NegativeBarFormat.Color.TintAndShade
    End With
    .PercentMax = dbSource.PercentMax
    .PercentMin = dbSource.PercentMin
    .ShowValue = dbSource.ShowValue = True
End With
End Sub

There’s a whole bunch of properties besides MinPoint and MaxPoint. About half deal with formatting, including formatting of negative values. All of these are analogous to their similarly-named user interface properties:

Data bar dialog

Deleting Selected FormatConditions

I wrote a routine to delete only certain types of format conditions from a target range. It gets called before the routine to copy the formats. For example, if the routine is copying DataBar formats, we’ll first delete all the existing ones.

It took longer than I expected to get a workable routine, chiefly because my initial attempts were inpossibly slow. Whereas copying all three types of FormatCondition to 1000 rows takes about a second, deleting formats by looping through the whole FormatConditions collection was taking minutes.

The solution was to break the target range into little ranges of 10 rows each and delete the matching conditions from those ranges. I assume this must simplify Excel’s internal indexing of the FormatConditions collection, whatever that means :). This only takes a couple of seconds for a thousand rows.

The other thing to note is that you have to loop backwards through the FormatConditions – just like deleting any Excel object in a loop – or you’ll get a “Subscript out of Range” error:

Sub DeleteFormatConditions(rngTarget As Excel.Range, _
    DeleteColorScales As Boolean, DeleteDataBars As Boolean, DeleteIconSets As Boolean)
Dim FormatConditionsCount As Long
Dim DeleteIncrement As Long
Dim DeleteRangeStart As Long
Dim DeleteRangeEnd As Long
Dim DeleteDone As Boolean
Dim rngDelete As Excel.Range
Dim objFormatCondition As Object
Dim i As Long

'Break target range into smaller ranges, which makes deletion go many times faster!
DeleteIncrement = 10
DeleteRangeStart = 1
'Min to keep from going past end of target range
DeleteRangeEnd = Application.WorksheetFunction.Min _
    (DeleteRangeStart + DeleteIncrement, rngTarget.Rows.Count)
Do While Not DeleteDone
    'rngTarget.Parent is the worksheet
   Set rngDelete = rngTarget.Parent.Range(rngTarget.Cells(DeleteRangeStart, 1), _
        rngTarget.Cells(DeleteRangeEnd, rngTarget.Columns.Count))
    FormatConditionsCount = rngDelete.FormatConditions.Count
    'Check each format condition's type and call matching routine
   'Step backwards or risk "Subscript out of Range"
   For i = FormatConditionsCount To 1 Step -1
        Set objFormatCondition = rngDelete.FormatConditions(i)
        If DeleteColorScales And objFormatCondition.Type = 3 Then
            objFormatCondition.Delete
        End If
        If DeleteDataBars And objFormatCondition.Type = 4 Then
            objFormatCondition.Delete
        End If
        If DeleteIconSets And objFormatCondition.Type = 6 Then
            objFormatCondition.Delete
        End If
    Next i
    If DeleteRangeEnd >= rngTarget.Rows.Count Then
        DeleteDone = True
    End If
    DeleteRangeStart = Application.WorksheetFunction.Min _
        (DeleteRangeStart + DeleteIncrement, rngTarget.Rows.Count)
    DeleteRangeEnd = Application.WorksheetFunction.Min _
        (DeleteRangeEnd + DeleteIncrement, rngTarget.Rows.Count)
Loop
End Sub

The Formula Property

As I mentioned above, each of these FormatConditions has a Formula property. I don’t see a match for this property anywhere in the Excel user interface. According to MSDN, it:

Returns or sets a String representing a formula, which determines the values to which the data bar will be applied.

This property is useful to limit the range of values that will display the conditional format. A typical scenario is when you have a range of numbers containing both positive and negative values. You may want to create more than one conditional format for this range of numbers—one for positive values and another for negative values.

Sure enough, if I apply it to a DataBar definition, like so…

dbDataBar.Formula = "=A1 > -5"

… I get this formatting, where the DataBars are only applied to cells with values greater than negative 5:

Data bar formula property

If there is a way to do this in the user interface, please let me know!

Miscellaneous:

  • In my previous post on this, I noted that a recorded macro sets the added conditional format to the first priority and that I was doing the same in my code. However, that’s a bad idea. When copying more than one format it will rearrange their order.
  • If you are fooling around with this stuff, you’ll notice that recording a macro that modifies existing conditional formatting produces all the code for that formatting, not just for the modification. This can be annoying or useful, depending.
  • The StopIfTrue FormatConition doesn’t apply to these three objects. You can see that they are grayed out in the Excel dialog.
  • The ScopeType and PTCondition properties have to do with conditional formatting in pivot tables.

Download!

Here’s a workbook with a working model and all the code.
