I’m working on a pivot chart and pivot table navigator. It lets you click around between pivots and their associated charts. It consists of a small form with a list of the active workbook’s pivot tables. You use this list to navigate to pivots and their charts. When you choose a different pivot or chart in Excel itself I want the selected item in the list to change. I can use the SelectionChange event and the Range.PivotTable property to determine which pivot table has been selected. But SelectionChange doesn’t fire when you click into a chart. After messing about for a bit I’ve come up with a chart SelectionChange event that fires on chart selection and also includes all the stuff in a normal SelectionChange event.

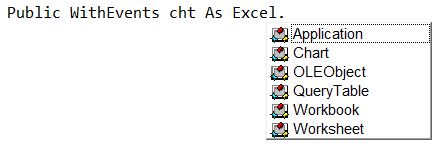

The crux of the solution can be found in this excellent Jon Peltier post describing Chart events. It turns out charts are one of the Excel objects that supports WithEvents:
This lets me create a tiny chart class that I can instantiate for each chart in all open workbooks.
Here’s the clsChart class:
Public WithEvents cht As Excel.Chart
Public cFullSelectionChange As clsFullSelectionChange
Private Sub cht_Activate()
Set cFullSelectionChange.Chart_Activated = cht
End Sub
It’s got the WithEvents declaration that allows us to capture chart events. In this case we’re capturing the event that occurs when a charge is activated. When that happens it pokes the Chart_Activated property in the clsFullSelectionChange class. This is the “parent” class that creates an instance of clsChart for each chart in the workbook.
FullSelectionChange Class That Includes Charts
Here’s the code for the cFullSelectionChange class:
Private cChart As clsChart
Public WithEvents app As Excel.Application
Private collCharts As Collection
Public Event PivotSelected(pvt As Excel.PivotTable)
Public Event ChartSelected(cht As Excel.Chart)
Public Event OtherSelected()
Private Sub Class_Initialize()
Dim Wb As Excel.Workbook
Dim ws As Excel.Worksheet
Dim chtObject As Excel.ChartObject
Dim cht As Excel.Chart
Set app = Application
Set collCharts = New Collection
For Each Wb In Application.Workbooks
For Each cht In Wb.Charts
Set cChart = New clsChart
Set cChart.cFullSelectionChange = Me
Set cChart.cht = cht
collCharts.Add cChart
Next cht
For Each ws In Wb.Worksheets
For Each chtObject In ws.ChartObjects
Set cChart = New clsChart
Set cChart.cFullSelectionChange = Me
Set cChart.cht = chtObject.Chart
collCharts.Add cChart
Next chtObject
Next ws
Next Wb
End Sub
Public Property Set Chart_Activated(cht As Excel.Chart)
RaiseEvent ChartSelected(cht)
End Property
Private Sub app_SheetSelectionChange(ByVal Sh As Object, ByVal Target As Range)
Dim ActivePivot As Excel.PivotTable
On Error Resume Next
Set ActivePivot = ActiveCell.PivotTable
On Error GoTo 0
If Not ActivePivot Is Nothing Then
RaiseEvent PivotSelected(ActivePivot)
Else
RaiseEvent OtherSelected
End If
End Sub
The last sub in the class, app_SheetSelectionChange, is a regular old application-level SheetSelectionChange event. It checks whether the ActiveCell is in a pivot table. Note that I could have used Selection just as easily as Activecell. I included this event in this class so that all the selection logic would be in one place, rather than putting it in the UserForm itself as I’d normally do. You’ll see below that this keeps the UserForm code quite simple.
The second-to-last sub is the Chart_Activated Property that gets poked by the individual chart classes when a chart is activated. It receives the activated chart object from the chart class.
Both these last two subs raise events that are hooked in the UserForm. The events are defined at the top of the module. They simply make the pivot table or chart available in the userform, much like an Sh or Target parameter in a built-in event. If you aren’t familiar with raising custom events the info at the end of Chip Pearson’s event page is very helpful.
The class’s Initialize routine creates instances of the chart class – one for every standalone or embedded chart in all open workbooks. If this isn’t familiar, take a look at the same Chip Pearson page linked above, specifically the Declaring WithEvents Variables section.
The UserForm
Because most of the work gets done in the two classes, the UserForm code is simple and powerful. The form looks like this, with textboxes to show either the selected chart or pivot table, if either:
UserForm Code
Private Sub UserForm_Initialize()
Set cFullSelectionChange = New clsFullSelectionChange
End Sub
Private Sub cFullSelectionChange_ChartSelected(cht As Chart)
Me.txtActiveChart.Text = cht.Name
Me.txtActivePivot.Text = ""
End Sub
Private Sub cFullSelectionChange_PivotSelected(pvt As PivotTable)
Me.txtActivePivot.Text = pvt.Name
Me.txtActiveChart.Text = ""
End Sub
Private Sub cFullSelectionChange_OtherSelected()
Me.txtActivePivot.Text = ""
Me.txtActiveChart.Text = ""
End Sub
The top of the UserForm module has the WithEvents declaration of the cFullSelectionChange class. It’s declared WithEvents because the class raises the pivot and chart activation events that we want to capture in this form. The form’s Initialize sub simply instantiates the
cFullSelectionChange class. Below that are the three event modules for pivot, chart or other selection.
Summary
The form instantiates the cFullSelectionChange class, which in turn instantiates a cChart class for each chart in every open workbook. Whenever a chart is activated its cChart class passes this action up to the cFullSelectionChange class, which raises the selection event in the UserForm.
Download
Here’s a sample workbook with the form and code. Let me know what you think!
