Chart SelectionChange Event

Chart SelectionChange Event

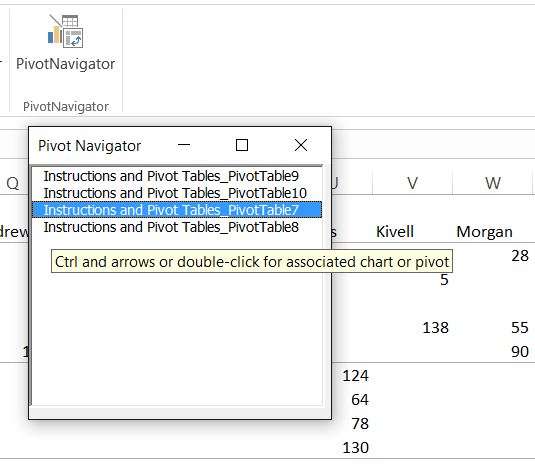

I’m working on a pivot chart and pivot table navigator. It lets you click around between pivots and their associated charts. It consists of a small form with a list of the active workbook’s pivot tables. You use this list to navigate to pivots and their charts. When you choose a different pivot or chart in Excel itself I want the selected item in the list to change. I can use the SelectionChange event and the Range.PivotTable property to determine which pivot table has been selected. But SelectionChange doesn’t fire when you click into a chart. After messing about for a bit I’ve come up with a chart SelectionChange event that fires on chart selection and also includes all the stuff in a normal SelectionChange event.

The crux of the solution can be found in this excellent Jon Peltier post describing Chart events. It turns out charts are one of the Excel objects that supports WithEvents:

Excel withevents objects

This lets me create a tiny chart class that I can instantiate for each chart in all open workbooks.

Here’s the clsChart class:


Public WithEvents cht As Excel.Chart
Public cFullSelectionChange As clsFullSelectionChange

Private Sub cht_Activate()
Set cFullSelectionChange.Chart_Activated = cht
End Sub

It’s got the WithEvents declaration that allows us to capture chart events. In this case we’re capturing the event that occurs when a charge is activated. When that happens it pokes the Chart_Activated property in the clsFullSelectionChange class. This is the “parent” class that creates an instance of clsChart for each chart in the workbook.

FullSelectionChange Class That Includes Charts

Here’s the code for the cFullSelectionChange class:


Private cChart As clsChart
Public WithEvents app As Excel.Application
Private collCharts As Collection
Public Event PivotSelected(pvt As Excel.PivotTable)
Public Event ChartSelected(cht As Excel.Chart)
Public Event OtherSelected()

Private Sub Class_Initialize()
Dim Wb As Excel.Workbook
Dim ws As Excel.Worksheet
Dim chtObject As Excel.ChartObject
Dim cht As Excel.Chart

Set app = Application
Set collCharts = New Collection
For Each Wb In Application.Workbooks
    For Each cht In Wb.Charts
        Set cChart = New clsChart
        Set cChart.cFullSelectionChange = Me
        Set cChart.cht = cht
        collCharts.Add cChart
    Next cht
    For Each ws In Wb.Worksheets
        For Each chtObject In ws.ChartObjects
            Set cChart = New clsChart
            Set cChart.cFullSelectionChange = Me
            Set cChart.cht = chtObject.Chart
            collCharts.Add cChart
        Next chtObject
    Next ws
Next Wb
End Sub

Public Property Set Chart_Activated(cht As Excel.Chart)
RaiseEvent ChartSelected(cht)
End Property

Private Sub app_SheetSelectionChange(ByVal Sh As Object, ByVal Target As Range)
Dim ActivePivot As Excel.PivotTable

On Error Resume Next
Set ActivePivot = ActiveCell.PivotTable
On Error GoTo 0
If Not ActivePivot Is Nothing Then
    RaiseEvent PivotSelected(ActivePivot)
    RaiseEvent OtherSelected
End If
End Sub

The last sub in the class, app_SheetSelectionChange, is a regular old application-level SheetSelectionChange event. It checks whether the ActiveCell is in a pivot table. Note that I could have used Selection just as easily as Activecell. I included this event in this class so that all the selection logic would be in one place, rather than putting it in the UserForm itself as I’d normally do. You’ll see below that this keeps the UserForm code quite simple.

The second-to-last sub is the Chart_Activated Property that gets poked by the individual chart classes when a chart is activated. It receives the activated chart object from the chart class.

Both these last two subs raise events that are hooked in the UserForm. The events are defined at the top of the module. They simply make the pivot table or chart available in the userform, much like an Sh or Target parameter in a built-in event. If you aren’t familiar with raising custom events the info at the end of Chip Pearson’s event page is very helpful.

The class’s Initialize routine creates instances of the chart class – one for every standalone or embedded chart in all open workbooks. If this isn’t familiar, take a look at the same Chip Pearson page linked above, specifically the Declaring WithEvents Variables section.

The UserForm
Because most of the work gets done in the two classes, the UserForm code is simple and powerful. The form looks like this, with textboxes to show either the selected chart or pivot table, if either:

Userform in action

UserForm Code

Private WithEvents cFullSelectionChange As clsFullSelectionChange

Private Sub UserForm_Initialize()
Set cFullSelectionChange = New clsFullSelectionChange
End Sub

Private Sub cFullSelectionChange_ChartSelected(cht As Chart)
Me.txtActiveChart.Text = cht.Name
Me.txtActivePivot.Text = ""
End Sub

Private Sub cFullSelectionChange_PivotSelected(pvt As PivotTable)
Me.txtActivePivot.Text = pvt.Name
Me.txtActiveChart.Text = ""
End Sub

Private Sub cFullSelectionChange_OtherSelected()
Me.txtActivePivot.Text = ""
Me.txtActiveChart.Text = ""
End Sub

The top of the UserForm module has the WithEvents declaration of the cFullSelectionChange class. It’s declared WithEvents because the class raises the pivot and chart activation events that we want to capture in this form. The form’s Initialize sub simply instantiates the
cFullSelectionChange class. Below that are the three event modules for pivot, chart or other selection.

The form instantiates the cFullSelectionChange class, which in turn instantiates a cChart class for each chart in every open workbook. Whenever a chart is activated its cChart class passes this action up to the cFullSelectionChange class, which raises the selection event in the UserForm.

Here’s a sample workbook with the form and code. Let me know what you think!

Track ActiveCell Movement Within Selection

Track ActiveCell Movement Within Selection

I searched the internet a bit before deciding that neither Excel or the forums have a way to track Activecell movement in a Selection. So, even though I don’t have the most pressing need for such an event, I spent several quality hours coding one.

The Issue
Here’s what I’m talking about. You can capture cell activation using Selection_Change code:

Private Sub Worksheet_SelectionChange(ByVal Target As Range)
Me.Range("A2") = ActiveCell.Address
Me.Range("B2") = ActiveCell.Value
End Sub

Selection Change

But this doesn’t capture cell activation within a selection, the kind that happens when you select an area and then tab through it:

No ActiveCell Change

I noticed this while creating a little ActiveCell Viewer form. My solution is to capture TAB key presses using Application.OnKey. This is a little clunky in a couple of ways, but it seems to work.

My Solution
So my userform uses OnKey to capture the Tab press when a Selection has more than one cell. Now I know when the active cell is changing within a selection, so that’s good. The hard part is that, since I’ve killed the normal Tab behavior, I have to recreate it in VBA with code that moves the ActiveCell one cell forward. Before I can do that I need to define the active cell’s location in terms of the selection.

Basically, the code cycles through each cell in each Area of the Selection. The Areas cycle through in the order they were selected. Tab cycles through each cell of an Area from top to bottom, right to left no matter how you selected the Area.

A Little More About Areas
I do believe that areas are always rectangular. If you make a selection with the control key down, each down-drag-up of the mouse represents an area. I’ve delved into this area (hah) before in the SelectTracker post. As indicated there, if you hold down Ctrl and click a cell five times you get a Selection with five Areas. Interestingly, Excel 2016 gives the unsuspecting user a bit of a hint that this is happening by making the cell a little darker with each click:

darkening Selection

Back to the Coding Process

At first, as so often happens, the VBA seemed fairly simple:

  1. Find the ActiveCell’s position within the overall Selection by looping through its Areas and through each Area’s cells.
  2. Figure out what the next (or previous) cell would be, accounting for moving from one Area to the next and hopping to the beginning of the next Area or looping back to the beginning of the whole Selection.

Then I started thinking about Selections with multiple Areas that intersect the ActiveCell. To deal with this I did two things needed to make the tabbing flow smoothly through overlapping Areas.:

  1. Created a global variable to track which of these areas was selected by the last Tab press.
  2. Created a short routine to figure out the “most recent” Area that intersects the ActiveCell

The Code
Here’s the code that identifies the Activecell’s position within the Selection’s Areas and Cells:

Private Sub SelectNextCellInSelection()

'This sub is called when the Tab key is pressed.
'The point is to be able to capture Tab key presses
'that occur within a Selection, thereby capturing movement of the Activecell.
Dim SelectionCellIndex As Long
Dim SelectionCell As Excel.Range
Dim SelectionArea As Excel.Range

For Each SelectionArea In Selection.Areas
    SelectionCellIndex = 0
    'Mod lets us cycle to the Area after we reach the last one
   SelectionAreaIndex = (SelectionAreaIndex Mod Selection.Areas.Count) + 1
    For Each SelectionCell In Selection.Areas(SelectionAreaIndex).Cells
        SelectionCellIndex = SelectionCellIndex + 1
        If SelectionCell.Address = ActiveCell.Address Then
            GoTo SelectNext
        End If
    Next SelectionCell
Next SelectionArea

'Cycle to the next cell. If we're in the last one, we'll cycle to first.
SelectionCellIndex = (SelectionCellIndex Mod Selection.Areas(SelectionAreaIndex).Cells.Count) + 1
'If we're in the first cell must have gone to the next Area.
If SelectionCellIndex = 1 Then
    SelectionAreaIndex = (SelectionAreaIndex Mod Selection.Areas.Count) + 1
End If

'Because it will get incremented next time round
SelectionAreaIndex = SelectionAreaIndex - 1
End Sub

The code above uses the Mod function to cycle back to the beginning of the next Area or of the entire Selection.

The code to cycle backwards was surpisingly more difficult. Mod didn’t work in reverse, For/Next doesn’t work in reverse, and the beginning number is the last number of the previous Area changes (not 1). So although the logic was the same, the coding was much trickier.

Putting this in a UserForm had the additional complication that the procedures assigned to a key using OnKey have to reside in a regular module. So my code has two very short routines that poke a property in the UserForm, effectively passing the action back into the form as soon as possible.

I also learned VBA’s AppActivate command which shifts the focus from the form to Excel proper. I do that at the end of the forms Activate procedure, since it’s a Viewer after all and doesn’t need the focus.

The ActiveCell Viewer
You may be wondering why you even need an ActiveCell viewer. Well, you probably don’t. But if you did, it might be to see what’s in cells with big blobs of text, or ones that are in hidden columns or rows. And its ability to view cell contents using different format strings might also be nice:

Viewer in Action

Download the sample workbook and try it yourself!

Filtering Pivot Table Value Fields

Filtering Pivot Table Value Fields

In the old days, before I knew better, when I needed to filter a pivot table Value field I’d do it by using by throwing an autofilter from the Data menu on it:

Pivot with Autofilter

It made me feel dirty but I didn’t know any other way to filter pivot table value fields. Clearly pivot tables provided no filter in the Values columns:

Pivot with no filter

And then one day I read this SuperUser answer by mtone and never looked back. If you don’t know how to apply a Value Filter to a non-Value pivot field I recommend reading it right now:

SuperUser Value Filter answer

Good wasn’t it? I started to write a post about this and realized this was the best explanation I’ve seen. I especially like that mtone explains how choosing different fields to apply the filter to will result in different levels of aggregation, and will change your results.

One Value Field Filtering Oddity

I was prompted to write this post after answering Bijan’s question on Stack Overflow. I quickly helped solve his problem but was perplexed because his original issue was that he was applying a value filter to the value field itself. As I said at the beginning, this isn’t possible. Turns out that’s not quite true. After an extended chat he showed me how he did it.

Before you can do this, you first need to use the field as a Row, Column or Report field. Simply dragging it to the Row area of the Show Filter dialog and then to the Values area will do the trick. Once you do so, you can click the down arrow next to the field name in the pivot’s Show Fields dialog:

show fields with dropdown

At that point you can pick the various Value filters.

value field Value Filters

As Bijan discovered though this doesn’t actually do anything. No filtering occurs (and if it did, it wouldn’t be an aggregate filter anyways). And when you drag the field back to a non-value position it, the filter that is, goes away. Weird and bug-like.

MenuRighter Update Finished

MenuRighter Update Finished

A year or so ago I posted about updating MenuRighter, my free add-in for customizing Excel’s right-click menus. It’s done! You can go to the MenuRighter page for a download link and instructions. Or read on for some examples of what MenuRighter can do.

MenuRigher Customization Examples
Below I’ve modified the Row menu, with the default Excel 2016 version on the left and the modified version on the right. Copy, Cut, Paste and a few other buttons were removed and Freeze Panes is added to the top:

MenuRighter sample Row before


Here’s the modified Row menu in use. Note that the button caption changes in context from “Freeze” to “Unfreeze”:

MenuRighter Row modification in action

Modified Cell Menu
Here’s my modified Cell right-click menu. It’s barely recognizable, so let me restate that this is the menu you get when you right-click in a cell. I’ve again deleted the Cut, Copy, Paste, Clear Contents and several other buttons. At the top I’ve added the menu for my personal addin, cleverly named “myBar.” Just one click added the whole structure to the Cell menu:

MenuRighter sample Cell

You can see that I’ve also added a whole bunch of filtering buttons. Two of the built-in ones are pulled up a level from the Cell>Filter menu, like “Filter by Selected Cell’s Value.” There’s also a couple for my own routines, like “Filter by All Selected Values.”

“Autofilter” is there so I can toggle filtering for whatever Table or range I’m in. (If you’re looking for this one, one its locations is Worksheet Menu Bar > Data > Filter > AutoFilter).

Two Other Examples

Here I’ve added a couple of my routines to the Ply menu. That’s the one you get by right-clicking a sheet tab:
MenuRighter sample Ply

And here’s the entire File menu added to the Cell menu. Everything at your fingertips!

Cell with File

Just kidding. I’d never do that.

New MenuRighter Page

Again, here’s the page with the download link and instructions for the new version. Please let me know what you think if you try it.

Editing Shape Points for No Good Reason

Editing Shape Points for No Good Reason

Over at Bacon Bits, Mike Alexander has a nice post out yesterday on editing shape points to create custom graphics. It shows how to use a shape’s Edit Points command to create interesting dashboard icons. I haven’t used Edit Points for years, but his post inspired me to fool around with them. I ended up with a bit of code for Editing Shape Points for No Good Reason.

In Mike’s post he shows how you can edit points to modify a half-circle into a more interesting shape. His edit of a half-circle looks something like this (only better):

semicircle to wavy

I thought that was pretty cool, so then I dragged the top below the bottom:

semicircle to wavy

That was fun. Now how about some facial reconstruction for Smiley?

smiley to pointy

At this point of course I had to learn how to program these edits in VBA. The result is code that randomly messes with the edit points, along with colors:

Pointless Point Editing Code

Sub EditPointMadness()
Dim shp As Shape
Dim shpNodes As ShapeNodes
Dim CenterX As Long
Dim CenterY As Long
Dim CurrXValue As Long
Dim CurrYValue As Long
Dim ws As Excel.Worksheet
Dim pointsArray As Variant
Const PointOffset As Long = 200

Set ws = ActiveSheet
If ws.Shapes.Count = 0 Then
    ws.Shapes.AddShape msoShapeSmileyFace, 300, 300, PointOffset, PointOffset
    Exit Sub
End If
Set shp = ws.Shapes(1)
CenterX = shp.Left + (shp.Width / 2)
CenterY = shp.Top + (shp.Height / 2)
Set shpNodes = shp.Nodes
With shpNodes
    .Insert WorksheetFunction.RandBetween(1, .Count), msoSegmentCurve, msoEditingAuto, _
        WorksheetFunction.RandBetween(CenterX - PointOffset, CenterX + PointOffset), _
        WorksheetFunction.RandBetween(CenterY - PointOffset, CenterY + PointOffset), _
        WorksheetFunction.RandBetween(CenterX - PointOffset, CenterX + PointOffset), _
        WorksheetFunction.RandBetween(CenterY - PointOffset, CenterY + PointOffset), _
        WorksheetFunction.RandBetween(CenterX - PointOffset, CenterX + PointOffset), _
        WorksheetFunction.RandBetween(CenterY - PointOffset, CenterY + PointOffset)
    If Timer Mod 2 = 0 Then
        pointsArray = .Item(WorksheetFunction.RandBetween(1, .Count)).Points
        CurrXValue = pointsArray(1, 1)
        CurrYValue = pointsArray(1, 2)
        .SetPosition WorksheetFunction.RandBetween(1, .Count), _
            CurrXValue + WorksheetFunction.RandBetween(-PointOffset, PointOffset), _
            CurrYValue + WorksheetFunction.RandBetween(-PointOffset, PointOffset)
        shp.Fill.ForeColor.RGB = WorksheetFunction.RandBetween(1, 10000000)
        shp.Line.ForeColor.RGB = WorksheetFunction.RandBetween(1, 10000000)
    End If
    If Timer Mod 5 = 0 Then
        .Delete WorksheetFunction.RandBetween(1, .Count)
    End If
End With
End Sub

Every time you run the code above it adds, deletes and/or modifies another point. After a couple of times you get what I like to call “Picasso Smiley”:

smiley picasso

A few more and Smiley is getting blown into the next dimension:

smiley in the next dimension

Hopefully the code above is pretty straightforward. It leaves a few of the settings unrandomized, chiefly whether the new node is straight, shaped or a corner.

One question. How to refresh Excel between shape format changes?
One version of this code had a loop that edited the points every half second. But try as I might I couldn’t get the screen to update and show those changes. The changes would only appear after the code was finished, making a loop pointless. If anybody knows how to do this, please let us know (thereby adding some useful content to this post).

Here’s a workbook with the the code and a couple of buttons to run it.

smiley edit points

Getting Pivot Table Value Field Characteristics

Getting Pivot Table Value Field Characteristics

This post is about a bit of code that answered somebody’s Stack Overflow question, was fun to write, and taught me a few more things about the pivot table object model, which is my favorite object model. So neat, so tidy, so logical – just like pivot tables themselves.

What, you ask, do I mean by Value Field Characteristics? I mean the page, row and column fields and items that the value field is summing, counting or otherwise valuing. So in the picture below the selected value field has three row items: one each for Continent, Country and State.

value field

The Code

Here’s the code to print that same information to the Immediate window. Like the Excel tooltip in the picture it also lists the Value field name, e.g., Sum of Population, and its source field, e.g., Population. (This can be handy when you’ve modified the value field name to something like else, like “Residents.”):

Sub GetValueFieldStuff()
Dim pvtCell As Excel.PivotCell
Dim pvtTable As Excel.PivotTable
Dim pvtField As Excel.PivotField
Dim pvtItem As Excel.PivotItem
Dim pvtParentField As Excel.PivotField
Dim i As Long

On Error Resume Next
Set pvtCell = ActiveCell.PivotCell
If Err.Number <> 0 Then
    MsgBox "The cursor needs to be in a pivot table"
    Exit Sub
End If
On Error GoTo 0

If pvtCell.PivotCellType <> xlPivotCellValue Then
    MsgBox "The cursor needs to be in a Value field cell"
    Exit Sub
End If

Set pvtTable = pvtCell.PivotTable
For Each pvtField In pvtTable.PageFields
    i = 0
    For Each pvtItem In pvtField.PivotItems
        If pvtItem.Visible Then
            i = i + 1
            Debug.Print "PageField " & pvtField.Name & " - Pivot Item " & i & " is " & pvtItem.Name
        End If
    Next pvtItem
Next pvtField

Debug.Print "Value Field Name is " & pvtCell.PivotField.Name
Debug.Print "Value Field Source is " & pvtCell.PivotField.SourceName

For i = 1 To pvtCell.RowItems.Count
    Set pvtParentField = pvtCell.RowItems(i).Parent
    Debug.Print "Row Item " & i & " is " & pvtCell.RowItems(i).Name & ". It's parent Row Field is: " & pvtParentField.Name
Next i

For i = 1 To pvtCell.ColumnItems.Count
    Set pvtParentField = pvtCell.ColumnItems(i).Parent
    Debug.Print "Column Item " & i & " is " & pvtCell.ColumnItems(i).Name; ". It's parent Column Field is: " & pvtParentField.Name
Next i
End Sub

Before answering this question I didn’t know about the PivotCell.RowItems and PivotCell.ColumnItems properties. They’re pretty cool.

The person who posted this on Stack Overflow was looking to create an “actual” drilldown, which I think meant using the output to write a SQL query. You could modify the output of this routine to do so, as in this pseudocode:

SELECT * FROM qryContinentCountryState
WHERE pvtParentItem.Name = pvtCell.RowItems(i).Name

Alrighty then. Thanks for dropping by!

Finding a Pivot Chart’s Pivot Table

Finding a Pivot Chart’s Pivot Table

I don’t work with pivot charts very much, but recently I got the job of modifying a dashboard that uses a mess of them. As part of the modification, I’m deleting some of the charts, which is leaving behind unneeded pivot tables – pivot tables with unhelpful names like “PivotTable17.” In order to work with all this I wrote a quick routine for finding a pivot chart’s pivot table.

Until today I was under the impression you could create a pivot chart without having a pivot table. I thought they were just a different kind of representation of what’s in a pivot cache and that, as is true with pivot tables, you could have several feeding directly off one pivot cache. That’s not true. Every pivot chart requires a separate pivot table.

This meant that when I started deleting some pivot charts from the workbook I wanted to reduce the workbook clutter by also deleting their pivot tables. The trick was to find them. At first I tried clicking the ribbon’s “Change Data Source” button, but that points at the data the pivot table/chart combo is based on, not at the pivot table the chart is based on. I found I could see the pivot table name and the sheet it’s on in the pivot chart’s “Select Data” dialog. But then I was still stuck trying to figure out which pivot was which. What a perfect excuse to write some VBA and poke into some previously unexplored object model crannies!

The code below cycles through each pivot chart in a workbook, selects its pivot table and displays a msgbox with info about the pivot table. (In actual practice I collected all the pivot table data and used that to delete any pivot tables that weren’t in the collection. No hand-deleting if I can help it!)

The Code

Sub GetPivotChartSources()
Dim ws As Excel.Worksheet
Dim chtObject As Excel.ChartObject
Dim cht As Excel.Chart
Dim pvt As Excel.PivotTable

For Each ws In ActiveWorkbook.Worksheets
    For Each chtObject In ws.ChartObjects
        Set cht = chtObject.Chart
        If Not cht.PivotLayout Is Nothing Then
            Set pvt = cht.PivotLayout.PivotTable
            'activate the sheet the pivot is on
            MsgBox pvt.Name & " is on " & pvt.Parent.Name & " using data from " & pvt.SourceData
        End If
    Next chtObject
Next ws
End Sub

ChartObjects, PivotLayouts and More

The code above cycles through each ChartObject, which is the container for a chart embedded in a worksheet, as opposed to being its own tab. What we’re really interested in is the ChartObject’s chart object (ha!) so I set a variable to that. Then the key is that pivot charts have a PivotLayout* object, which in turn contains the pivot table object. Once you’ve got that you can access all the usual pivot table properties like Name, SourceData and TableRange2, which is the range containing the entire pivot table including the page filters.

After getting rid of the unneeded pivot tables I went back and ran very similar code to rename them to something more meaningful. First I renamed the charts from “Chart 17”, etc., to something like “chtRegionalRetentionRate” and then substituted this line into the heart of the code above:

pvt.Name = Replace(chtObject.Name, "cht", "pvt")

When I looked around the web for code to do this kind of stuff I didn’t find anything, and had to discover the crucial PivotLayout object on my own. So, as we used to say in the newsgroups, “hth”.

MSDN Errata?
* It seems to me that this MSDN PivotLayout page is wrong, and that it treats the PivotLayout object like the PivotLayout.PivotTable object.

Regex Cell Searcher

Regex Cell Searcher

My data is are of course always perfectly formed, so should I ever need to do something as mundane as copy and paste one of them – a datum that is – into another application I would just select the entire cell and copy and paste it. I’d never need something like a Regex Cell Searcher, aka reg(Excel)lsearcher, to parse my datum, er data, no … datum. Whatever.

But say I did. Say I had wanted to select a cell and instantly have all the phone numbers in that cell plunked into a listbox.

And imagine I could type regexes really fast:

regex cell searcher in action

And let’s also say I wanted to pluck the area codes from the same cell using regex submatches:


And say – just daring to dream here – I wanted the first phone number in the listbox automatically copied to the Windows clipboard. Like below, where I click the cell, the matches are found, and the first one is ready to be pasted into a search engine:

regex copy into clipboard

The Regular Expression

Here’s the regex I came up with to check for a phone number, which I’m defining as three numbers, bracketed or not by parentheses, followed by a space, dash or period, followed by three numbers, etc.:

(?:(\(?\d{3}\)?) ?[-\.]?)?\d{3}[-\.]\d{4}

I can see some issues with it. Regexes are finicky things and accounting for all the possibilities is tricky.

Happily, I’m one of those people with a love of regular expressions. When I bought a book recently for the first time in perhaps 10 years, it was Mastering Regular Expressions.

The Code

Here’s the routine that fills the listbox:

Private Sub UpdateResults()
Dim collMatches As Collection
Dim OneMatch As VBScript_RegExp_55.Match
Dim i As Long
Dim j As Long

If IsRegexPatternValid(Me.txtPattern) And Me.txtPattern <> "" Then
    Set collMatches = GetRegexMatches(Me.txtInput, Me.txtPattern)
    For i = 1 To collMatches.Count
        Set OneMatch = collMatches(i)
        lstMatches.AddItem OneMatch
        If OneMatch.SubMatches.Count > 0 Then
            For j = 1 To OneMatch.SubMatches.Count
                Me.lstSubMatches.AddItem OneMatch.SubMatches(j - 1)
            Next j
        End If
    Next i
End If
End Sub

And here’s the code that uses regular expressions to get the matches and submatches:

Function GetRegexMatches(InputString As String, SearchPattern As String, _
                         Optional boolIgnoreCase As Boolean = True, Optional boolGlobal As Boolean = True, Optional boolMultiline As Boolean = True, _
                         Optional UniqueMatches As Boolean = False) As Collection
Dim Regex As VBScript_RegExp_55.RegExp
Dim rgxMatch As VBScript_RegExp_55.Match
Dim rgxMatches As VBScript_RegExp_55.MatchCollection
Dim collMatches As Collection
Dim collUniqueMatches As Collection

Set Regex = New VBScript_RegExp_55.RegExp
With Regex
    .Pattern = SearchPattern
    .IgnoreCase = boolIgnoreCase
    'Find all matches, not just the first
   .Global = boolGlobal
    '^ and $ work per-line, not just at begin and end of file
   .MultiLine = boolMultiline
    Set collMatches = New Collection
    Set collUniqueMatches = New Collection
    If .test(InputString) Then
        'if matches, create a collection of them
       Set rgxMatches = .Execute(InputString)
        For Each rgxMatch In rgxMatches
            collMatches.Add rgxMatch
            On Error Resume Next
            collUniqueMatches.Add rgxMatch, rgxMatch
            On Error GoTo 0
        Next rgxMatch
    End If
End With

In addition to the features mentioned above, you can click on any item in the Match or SubMatch listboxes and that item will be copied to the clipboard. The form uses an Application class to track selections across all workbooks and is resizable using my form resizing code.

Regex in Excel Proper?

For those of you visiting the Excel User Voice site, where you can suggest and vote on future features in Excel, you may have noticed a fairly popular suggestion would add regex capabilities to Excel.


Here’s a workbook with the form and the code.

Close Workbook While Writing Over It

Close Workbook While Writing Over It

I appreciate that, when trying to copy over an open file, File Explorer gives me a chance to close the file and come back to resume the copy. It used to just stop, as I remember, but now it’s very nice:

folder is open warning

I’m not sure why the message says that a “folder” is open – I’m only trying to copy one file. That’s okay though, it’s clear enough what the message means (especially if you read it quickly). So, I just go into Excel, close the workbook and then go back to File Explorer and hit the “Try Again” button. I thought it would be helpful, or at least fun, to have a complementary function in Excel – a function that closes the workbook but allows me to immediately re-open it after finishing the copy

This is useful when saving to Excel from another program, like Crystal Reports, that exports to a workbook. Generally, I do the export, look at the output workbook, see something I want to change, go back into Crystal to fiddle, and export again*. Of course I can’t do the export if the workbook is still open, so I close it (if I remember) and then re-open it after the export. This requires using Excel’s Recent Files list, and if you read my last post you know I’m not a big fan.

So my most recent addition to my personal addin is a little routine that closes the active workbook and pops up a message box that “holds its place.” That way when I come back from saving over the just-closed file, I can re-open it with the click of a button:

close and hold
Here’s the code:

Sub CloseWbAndHold()
Dim WorkbookToClose As String

If ActiveWorkbook Is Nothing Then
    MsgBox "No active workbook."
    Exit Sub
End If
If ActiveWorkbook.Path = "" Then
    MsgBox "This workbook has no path."
    Exit Sub
End If

WorkbookToClose = ActiveWorkbook.FullName
ActiveWorkbook.Close False

If MsgBox("Re-open " & vbCrLf & WorkbookToClose & "?", vbYesNo + vbQuestion, "Re-open?") _
  = VbMsgBoxResult.vbYes Then
    Workbooks.Open WorkbookToClose
End If
End Sub

Note that the code closes the workbook without prompting to save, since I’m only planning to use it when I’m about to write over the workbook anyways.

And if I decide I want something even simpler, maybe I’ll just go with this:

Sub ReOpenLastFile()
If Application.RecentFiles.Count > 0 Then
    Workbooks.Open Application.RecentFiles(1)
End If
End Sub

* I’m happy to say that we use Crystal Reports mostly as a presentation layer for SQL, so I don’t often have to deal with formulas and the like in it.
